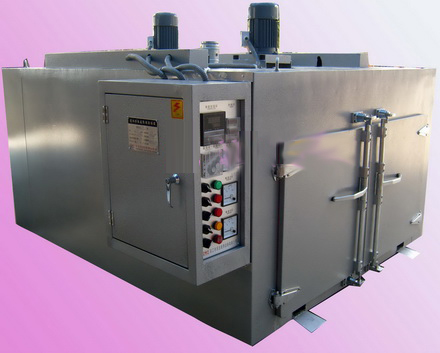

MAS - T far-infrared precision multi-purpose cycling warm air drying oven (pictured above), wide application range, is absorbing introduction, the reliability of the localization of substitution import drying equipment, dedicated to the ideal of electronic transformer, electroplating, chemical, electric power capacitor plates, and also applies to other products of dry baking industry. Unique design of vertical combination of horizontal air circulation system, strong drum wind and the uniformity of temperature.
Structure:
Drying oven, pu steel by Angle, shell is made of stainless steel plate, filled with studio aluminium ailicate fibre insulation between the two groups, infrared heater unit in the studio, left and right of the right side of heating a switch control alone power hige using intelligent and digital temperature control instrument, P, I, D adjustment function.

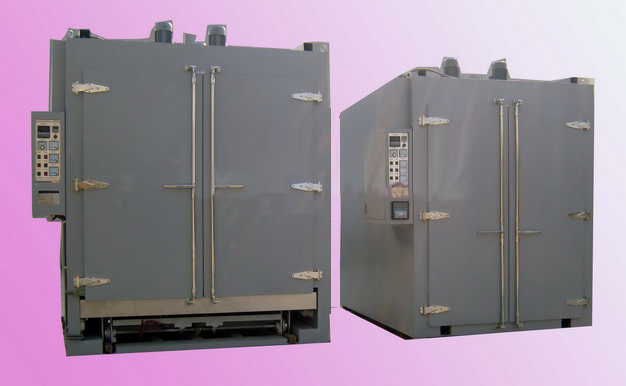

MAS - C series cycling warm air drying oven
[summary].
MAS - C series cycling warm air drying oven is a box type, and can tear open outfit, divided into CT (centrifugal fan) and CT - C (axial flow fan) series of products, it is to use steam and power for the heat. Through the heater, air in the case of heating the air circulation, through continuous air into the box, from Menorca supplement and continuously from the platoon is wet mouth, so that the heat transfer effect, increase water gradually decrease in materials, production of our company with low noise, oven high-temperature axial flow fan and automatic temperature control system. The circulation system, the heat sealed oven from traditional HongFang 3-7% to current 35-45 percent, the highest efficiency can reach 70%.
The detail parameters.
A studio size: high 1800mm * * width 1500mm 2000mm deep
A: 2300mm high envelop dimensions 2400mm * * width 2200mm deep
Aiming at temperature range: + 10 ~ 250 ° c, the temperature range arbitrary adjustable
A bladder materials: USES 1.2 mm thickness SUS304 wiredrawing stainless steel
A wall materials by 1.2 mm thickness, carbon steel A3 cold
A coating materials, wall using environmental protection from dry paint (paint), color hammer lines for silver
A heat preservation material: high aluminium ailicate fibre insulating layer, insulation performance
Aiming at the bottom of materials: embedded sockets, using two 12 # channel, convenient and reinforcement adopted 12 #, car rail steel.
Adopting high precision temperature control device: aiming intelligent temperature controller, automatic constant temperature control, accuracy ± 2 degrees.
A motor power: 1100W * 4/380V * 3
A number of air intake system: 2, up to 60 mm calibre. An air control regulation.
A number of exhaust system: 1, the diameter of 120 millimeter. Can be installed outside of the interface to shop
A temperature measurement device: a stainless steel armour 16pt100 temperature sensing device, platinum resistance temperature measurement precision.
A heating element: stainless steel tube electric heater is installed side duct, in case
Aiming AD16 / alarm device: APT, thermostatic type sound-light alarm time, can switch over alarm prompt.
A current and voltage isolator three-phase 380V: four lines. /
According to the customer request should make an Angle and channel by making the cart, surface USES 1.2 mm thickness SUS304 wiredrawing stainless steel.
A company specialized manufacture various industrial applications, studio volume 70 ~ oven 35 liters
The characteristic.
Most in the box, air circulation, high thermal efficiency, energy saving.
Using the forced ventilation effect, and adjustable points are in-chamber high winds, dry material. Dry heat. Heat can use steam, water, electricity, infrared, choose widely.
The noise is small, operation, balance, temperature control, easy installation and maintenance.
Wide application range, various materials, dry, dry equipment.

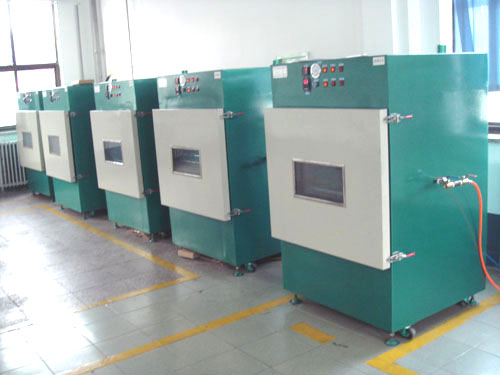

Nitrogen oven
Nitrogen oven is a new kind of temperature environment can be made clean, can satisfy the electric oven is electronic, medical apparatus, meter, factories, universities, research departments and units concerned for purification of the oven. This box is made of stainless steel, stainless steel tube heat studio, to purify exhaust gas purification of protecting without gas. Therefore this drying oven temperature uniformity of clean and caused by dry environment, improve product quality, try the beautiful appearance, easy to use, sensitive and accurate temperature control.
Structure:
This type of nitrogen by cabinet, studio, oven, gas pressure regulator heating systems and exhaust etc. Parts. Box by book steel welded, high-quality stainless steel inner studio, box filled with studio between aluminium ailicate fibre for insulation. With the door frame with insulation sealing strip (use high-temperature seal and clamping device) so effectively guarantee the cabinet of the sealing performance, work with twitch of indoor small screen three layers.
This oven adopts digital-display system, all the moves in cabinet. Its characteristic is clear reading, convenient adjustment, with high precision, simple structure, and the advantages of safe and reliable. The oven is the intake and exhaust device with the regulator, facilitate adjustment control protection gas flow. Horizontal air circulation system, strong drum wind made the evenness of temperature in the oven, ensure the stability of the temperature.
Organic glass soften the oven
The detail parameters.
Organic glass oven is softening in organic glass softening, buttons, hydraulic parts of curing process
A studio size: high 1500mm * * * * * 2150mm deep 1500mm wide
A: 2200mm high envelop dimensions 2000mm * * width 2350mm deep
Aiming at temperature range: + 10 ~ 250 ° c, the temperature range arbitrary adjustable
A bladder materials: using 1.0 mm thickness SUS304 wiredrawing stainless steel
A wall materials: the 1.2 mm thickness of carbon steel A3 cold
A coating materials, wall using environmental protection from dry paint (paint), color hammer lines for silver
A heat preservation material: high aluminium ailicate fibre insulating layer, insulation performance
Aiming at the bottom of materials: embedded sockets, using two 12 # channel, convenient and reinforcement adopted 12 #, car rail steel.
Adopting high precision temperature control device: aiming intelligent temperature controller, automatic constant temperature control, accuracy ± 2 degrees.
A motor power: 750W * * 2/3 zhejiang ke 380V motor Co., LTD.
A number of air intake system: 2, up to 60 mm calibre. An air control regulation.
A number of exhaust system: 1, the diameter of 120 millimeter. Can be installed outside of the interface to shop
A temperature measurement device: a stainless steel armour 16pt100 temperature sensing device, platinum resistance temperature measurement precision.
A heating element: stainless steel tube electric heater is installed side duct, in case
Aiming AD16 / alarm device: APT, thermostatic type sound-light alarm time, can switch over alarm prompt. A current and voltage isolator three-phase 380V: four lines. /
According to the customer request should make a square of stainless steel, the car according to customer's requirement
A company specialized manufacture various industrial applications, studio volume 70 ~ oven 35 liters
|
